Product Range Solenoid Valves & Filters

  • DELTA is certified according to EN ISO 9001:2015
  • We offer gas solenoid valves and gas filters made by ELEKTROGAS, approved according to EN 161 for air and gas with volume flow control.
  • Slowly or quickly opening and quickly closing
  • Sizes 9.5 – 152.4 mm* (3/8″ to 6″), Class A
  • These solenoid valves and filters are also available in a version for biogases or aggressive gases.

Download Area ELEKTROGAS Filters

Download Area ELEKTROGAS Solenoid Valves and Butterfly Valves

Download Area Certificates

*) As of 01.01.2010, the use of non-legally compliant units of measurement is no longer permitted in accordance with EinhZeitG. For example, 3/8″ will become 9.5 mm, but interchangeability with all previous ELEKTROGAS products will remain the same.

Actuators

Actuators

  • Brand ELEKTORGAS

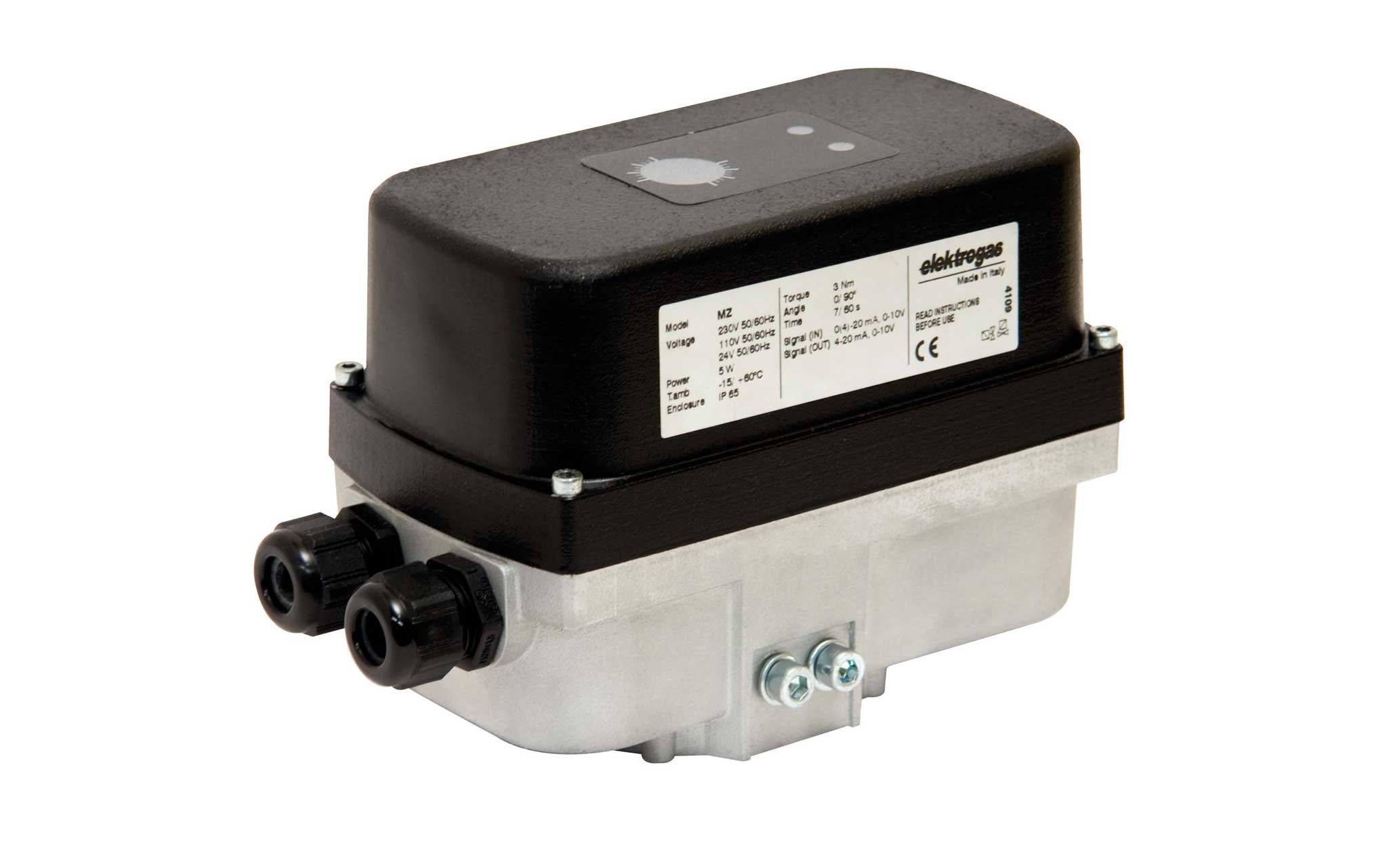

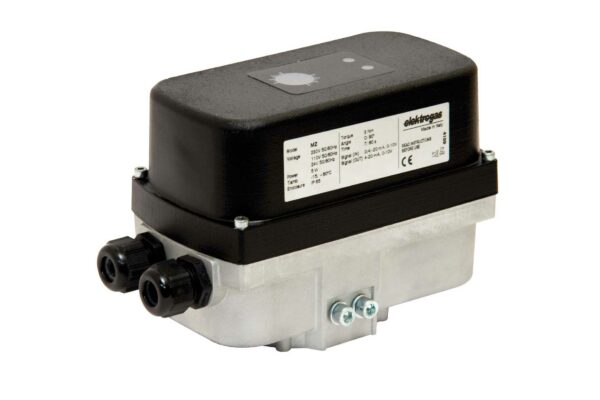

  • The servo motor MZ suitable for butterfly valves VF, VFH. It is used for the control of gas and air volume during combustion processes by means of switching cams (MZ2, MZ3) or electronic control (MZ5).

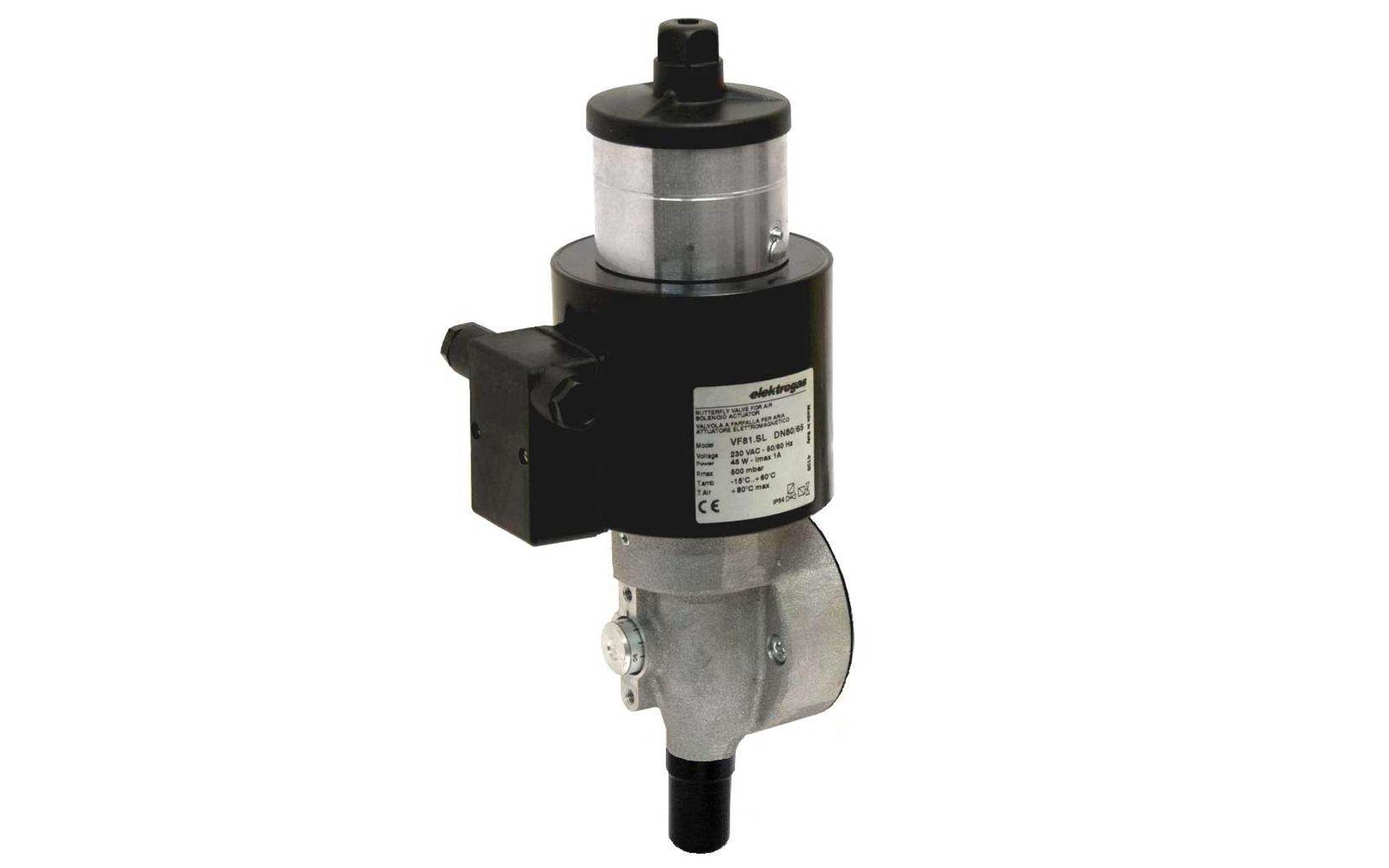

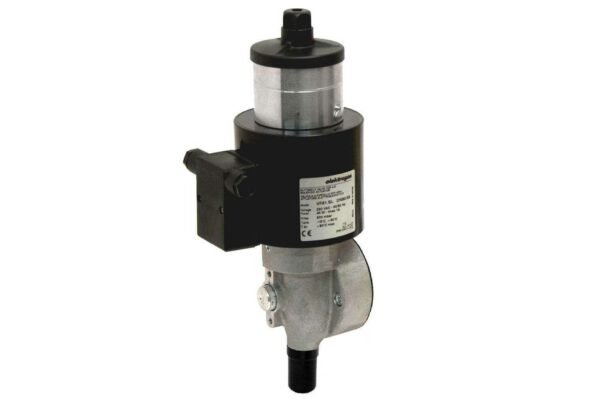

  • The SR/SL/ST solenoid actuators are designed to operate the VF and VFH butterfly valves and are used for two-stage control of air and gas volumes in combustion processes.

Automatic Valves

Automatic Valves

  • Brand ELEKTORGAS
  • LMV modulating valves are used in combustion processes that require linear regulation of air or gas. The flow rate changes proportionally to the opening angle of an internal mechanism so that the flow rate can be easily determined. The valve can be operated with a 3-point controller (MZ3 servo motor) or with continuous modulation by an analog signal (MZ5 servo motor).
  • The valve type VMH is a safety shut-off valve for gas with hydraulic drive. It is suitable for air or gas shut-off and releasing devices as used in the main line of gas burners and atmospheric gas boilers, industrial gas furnaces and other gas consuming devices.

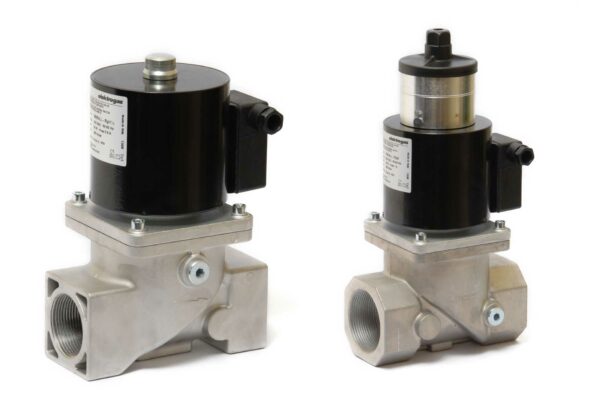

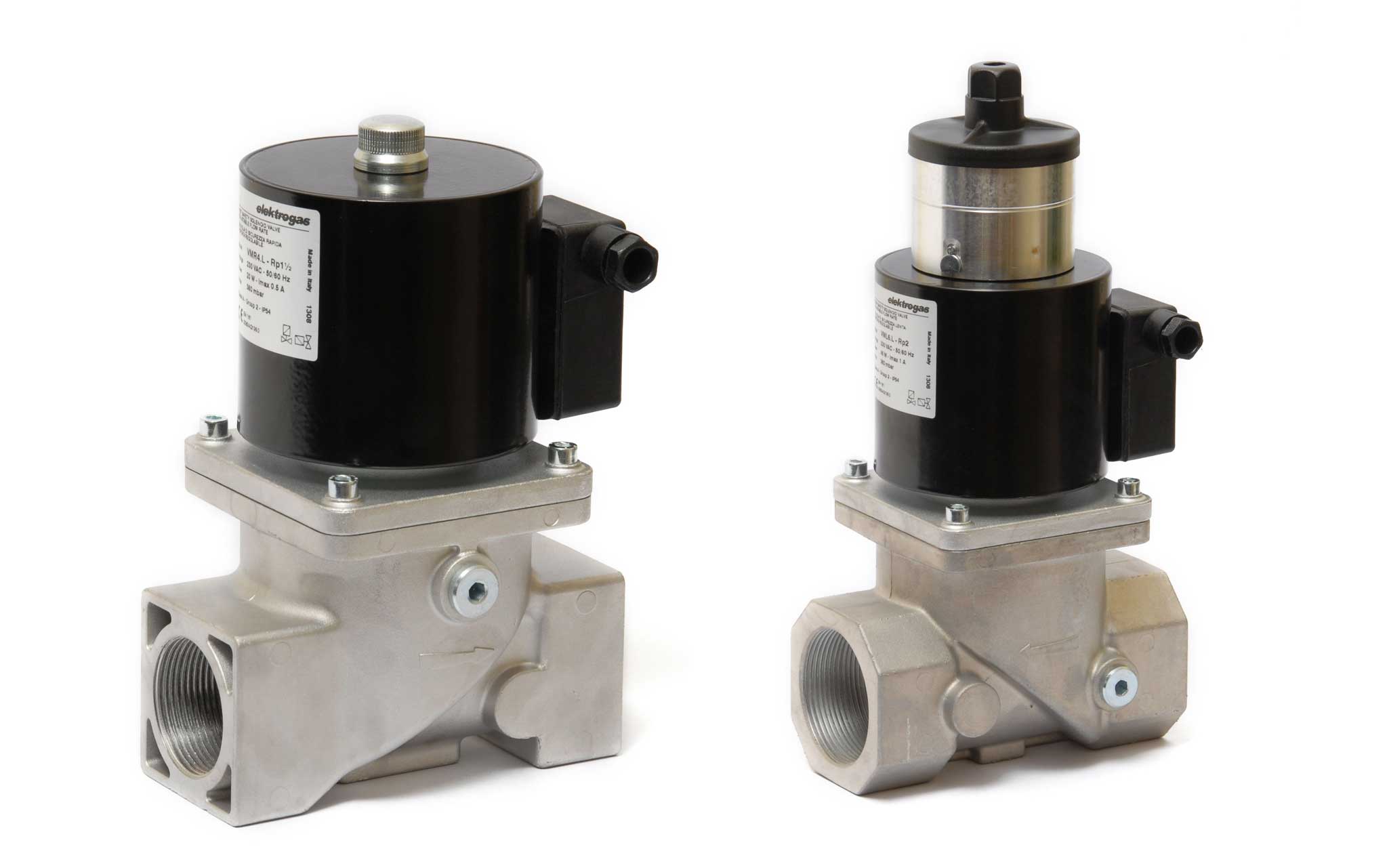

  • The valve type VML is a slow opening and fast closing, single stage safety solenoid valve and normally closed. This device is suitable for shutting off air and gas, as well as for use in conjunction with control units, as required in gas operated burners, atmospheric gas heaters, industrial heaters and other gas consumers.

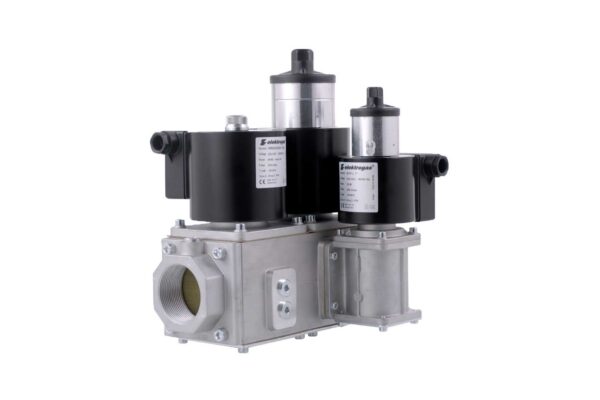

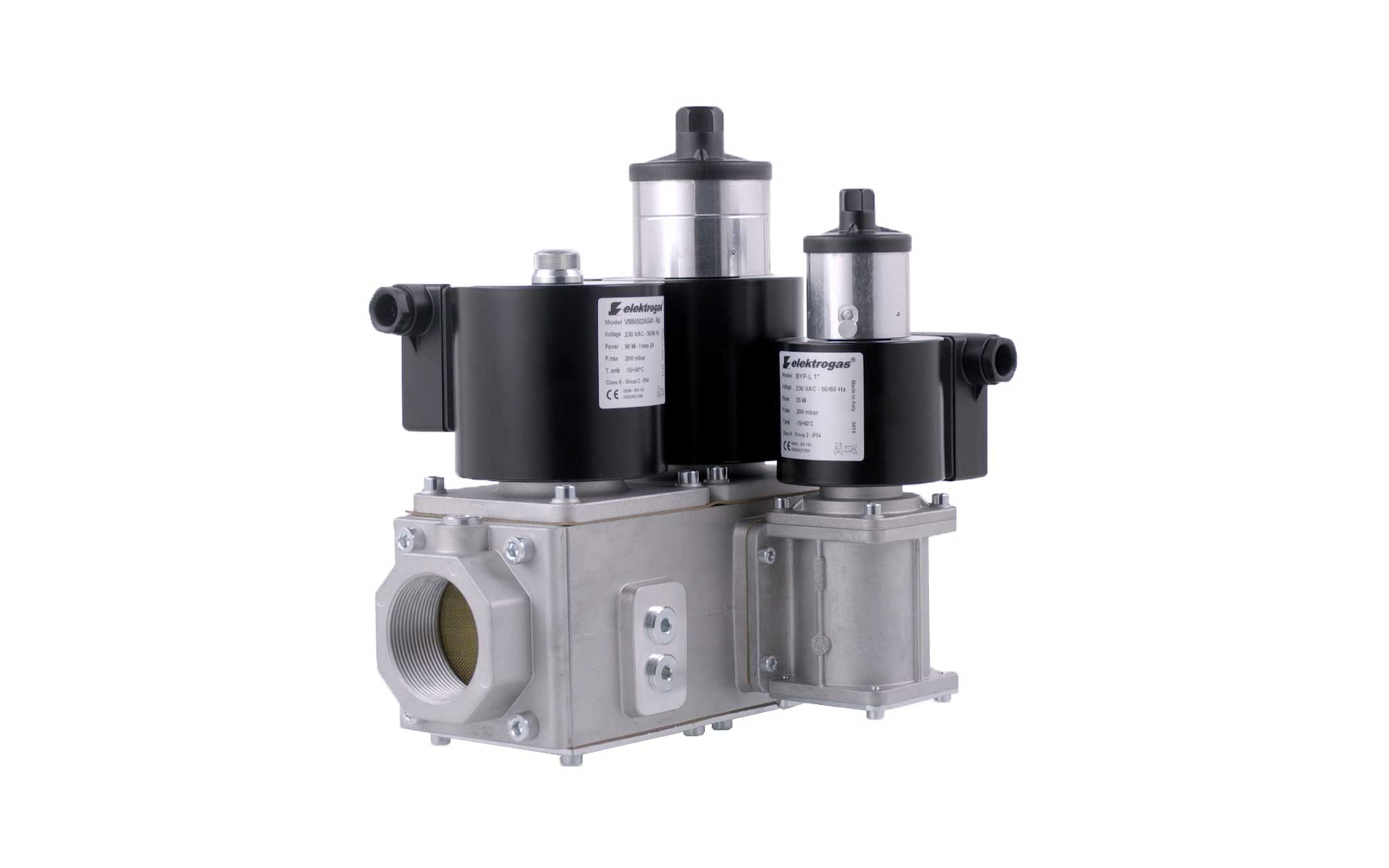

  • The valve type VMM is a combination of 2 safety solenoid valves in a common housing. This device is suitable for shut-off and release devices of air and gas (with one or two-stage operation) as they are required in gas operated burners, atmospheric gas heaters, heaters and other gas consumers.
  • The valve type VMR is a fast opening and closing, single stage safety solenoid valve, normally closed. This valve is suitable as a shut-off device for air and gas as used in gas burners, atmospheric gas heaters, industrial heating systems and other gas consumers.
  • The valve type VMP is a safety shut-off valve for gas with pneumatic actuator. It is suitable for air or gas shut-off and releasing devices as used in the main line of gas burners and atmospheric gas boilers, industrial gas furnaces and other gas consuming devices.
  • Valves type VRA / VLA / VTA are normally closed solenoid valves for regulation of cold combustion air (opened under voltage). This type of valve is suitable for controlling the combustion air in industrial gas burners, however cannot be used as a safety valve.

Butterfly Valves

Butterfly Valves

  • Brand ELEKTORGAS

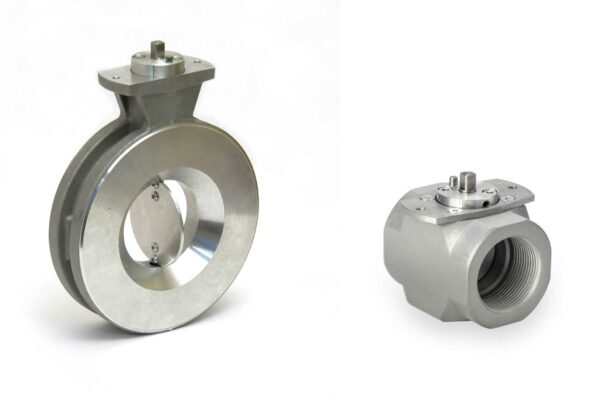

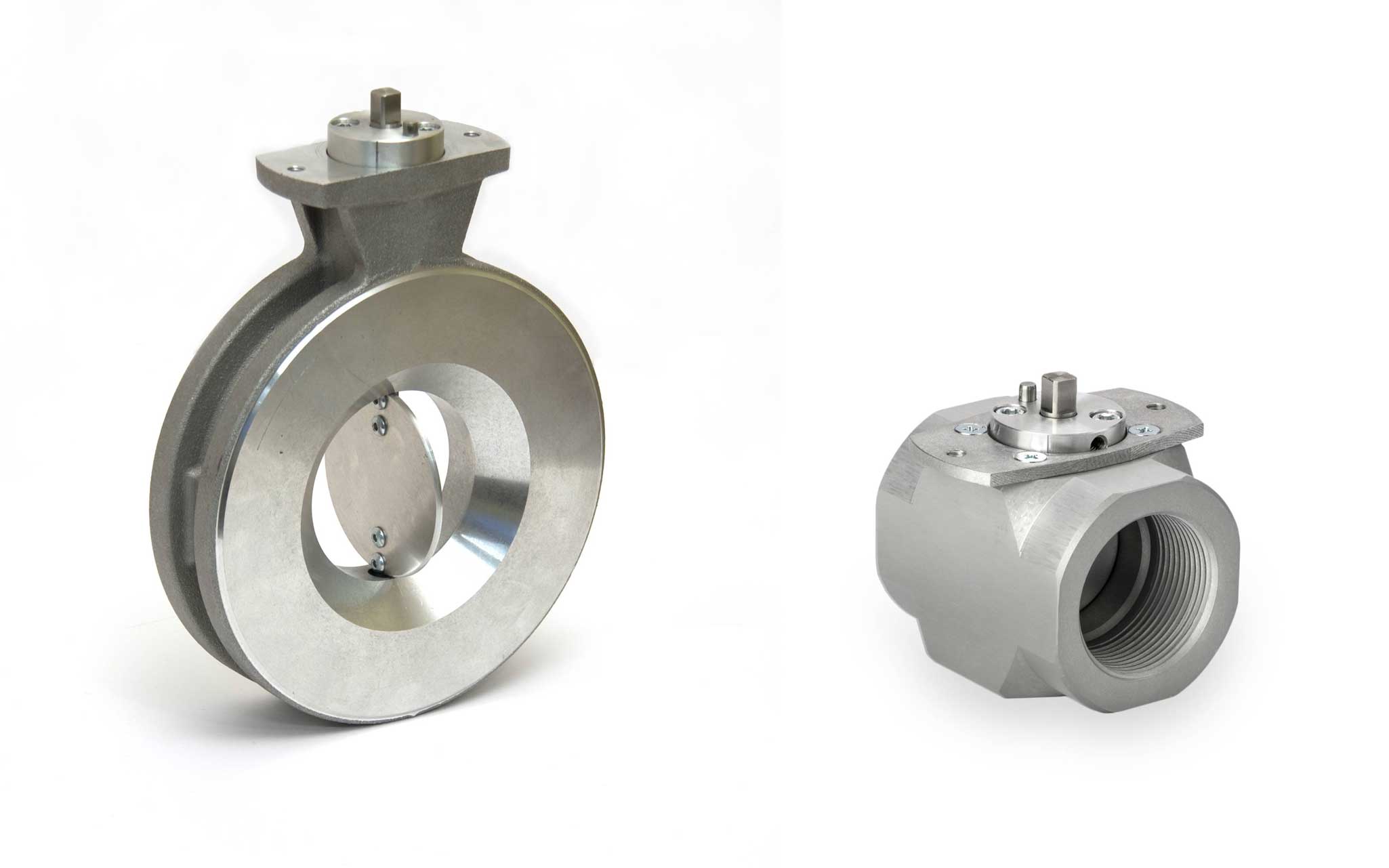

  • Type VF, VFT and VFH butterfly valves are designed to control air and gas flows during combustion processes.
  • The dampers can be operated manually by a handle or automatically by means of a servo motor or magnetic drive.

More details: Download data sheet

Gas Pressure Regulator

Gas Pressure Regulator

  • Brand ELEKTORGAS

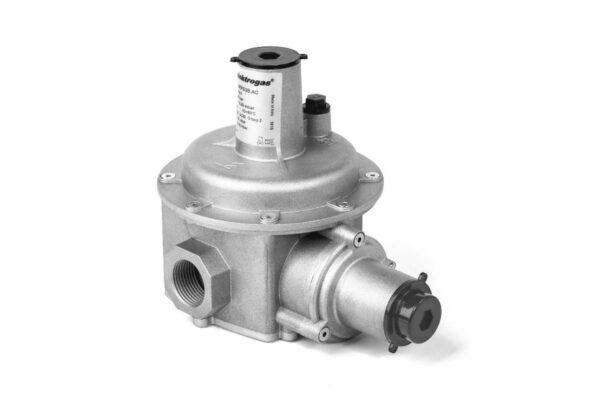

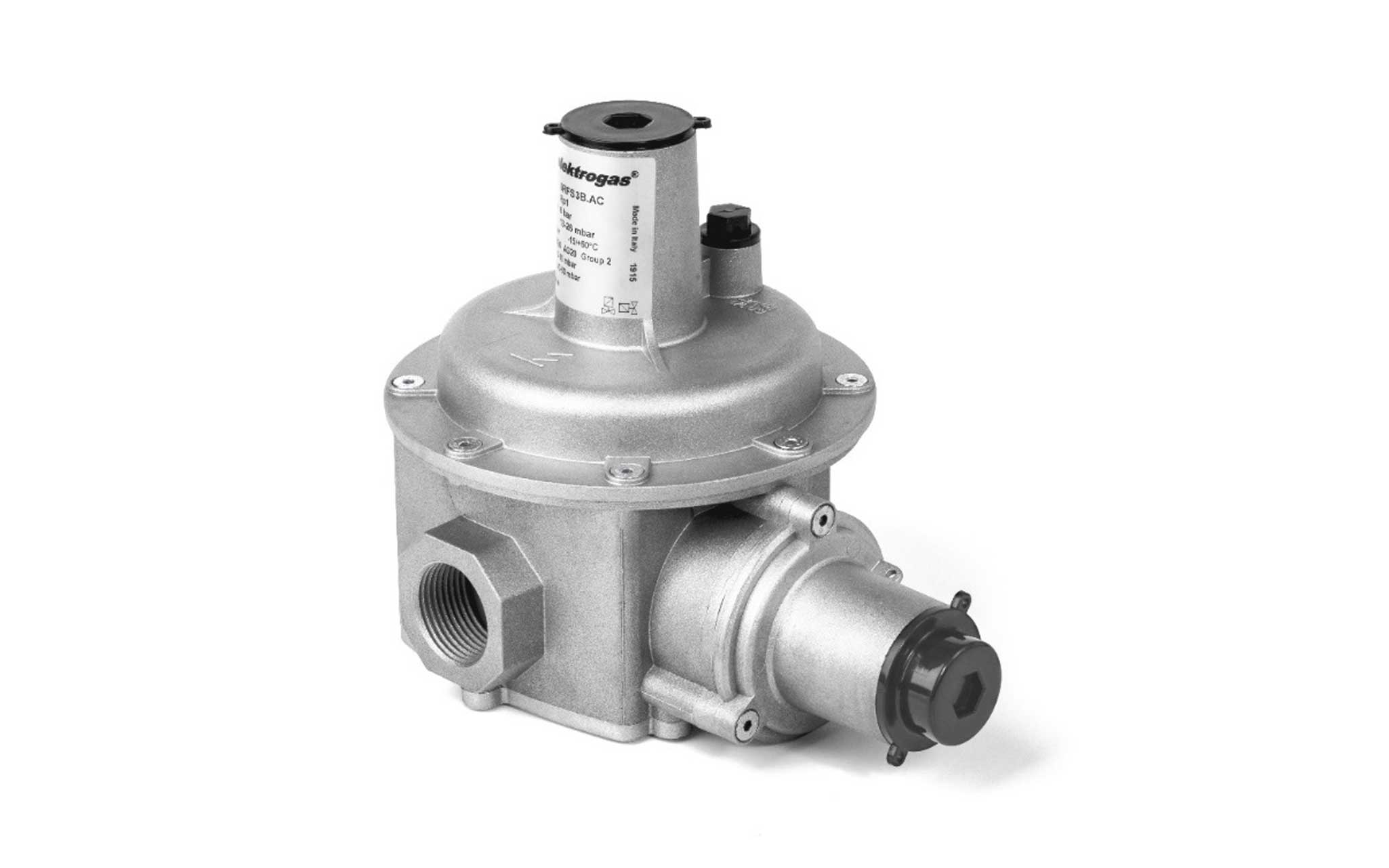

  • The regulator type R is a gas pressure regulator for gas pipelines according to EN 88. It is also available with an integrated filter (type RF) according to DIN3386. This unit provides clean gas at constant pressure for all downstream units.

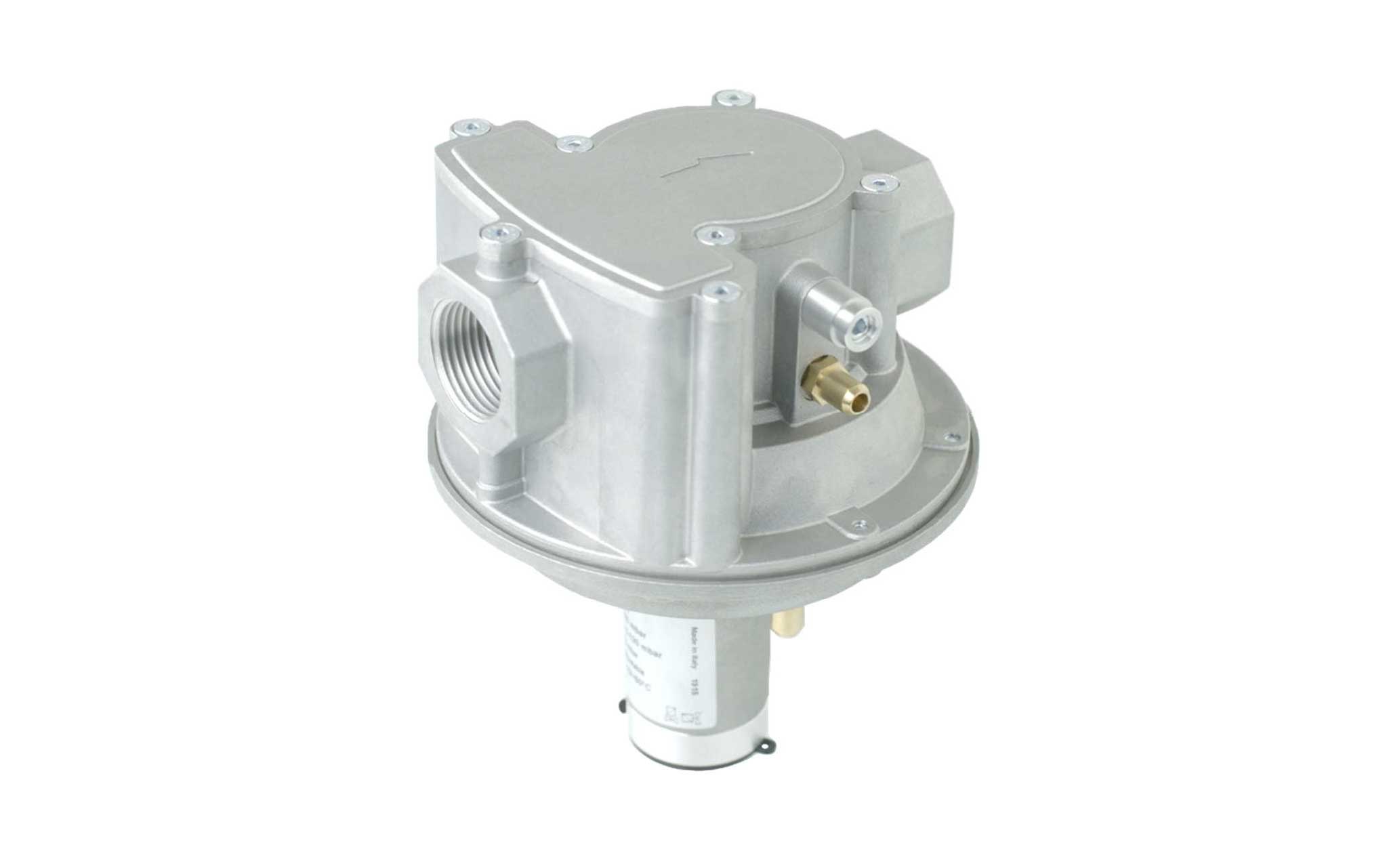

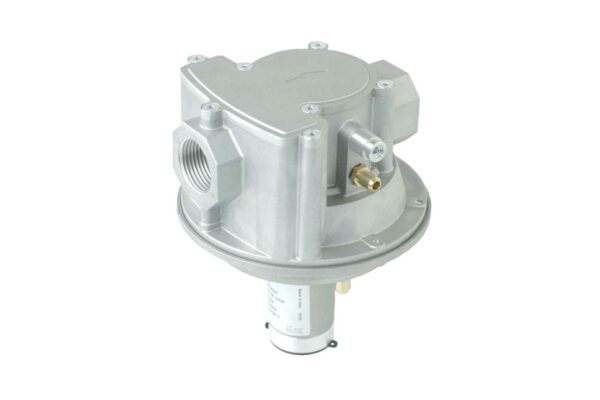

  • The regulator type RAG is designed to maintain a constant air-gas ratio in systems without preheated air upstream of gas burners. It is equipped on site with an adjustable bypass and can be used as a zero pressure regulator.
  • The valve type VS is a pressure relief valve which reduces temporary pressure increases in gas firing systems. Closing automatic valves or regulators that do not close tightly can cause an increase in pressure. By blowing off the overpressure into a relief line, the VS valve allows the system to function properly.

Filters for Air & Gas

Filters for Air & Gas

  • Brand ELEKTORGAS

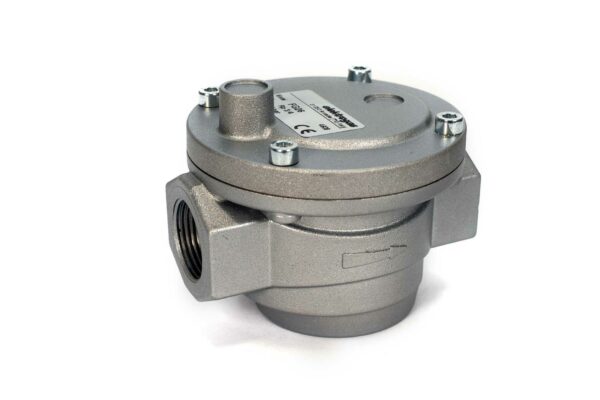

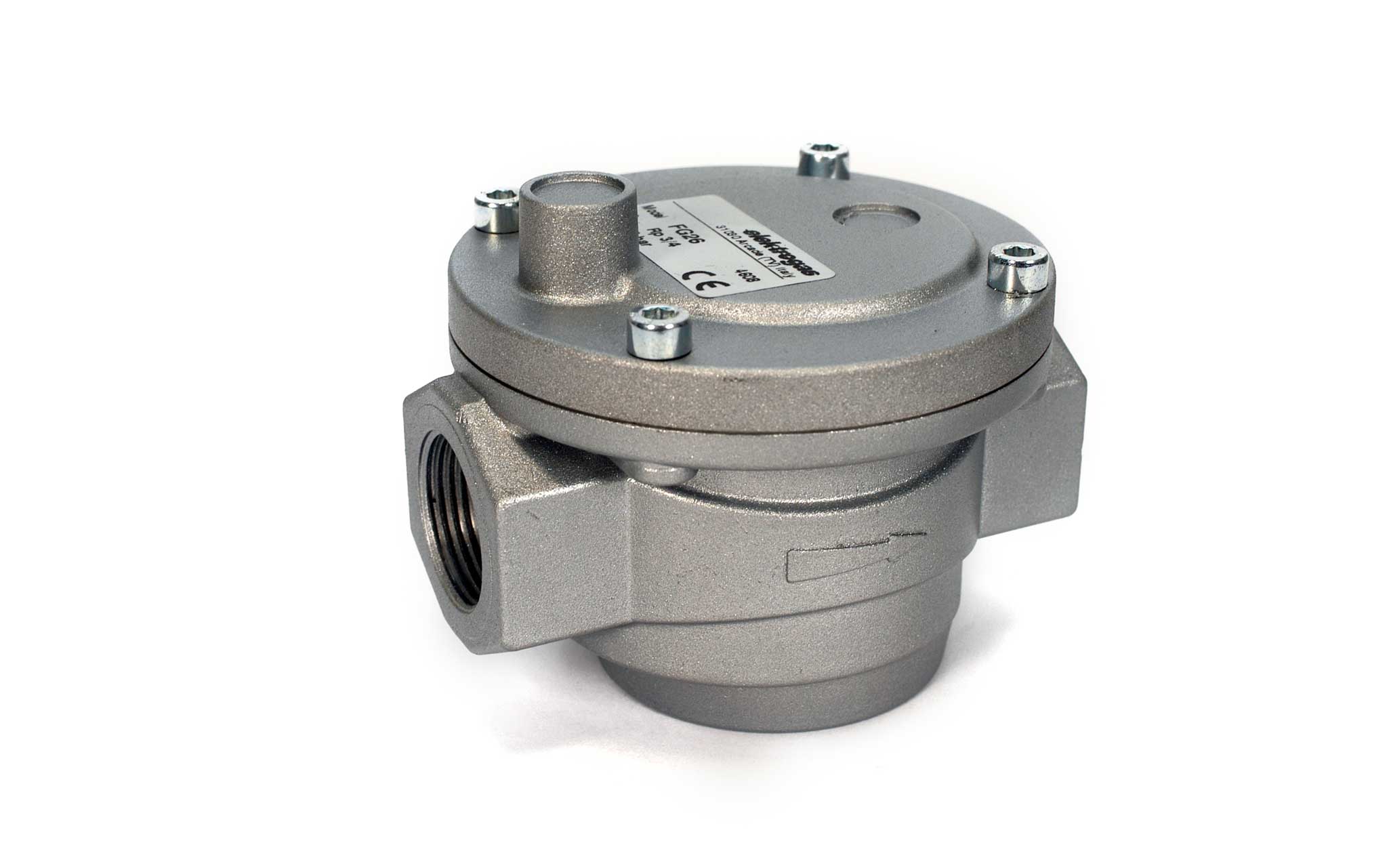

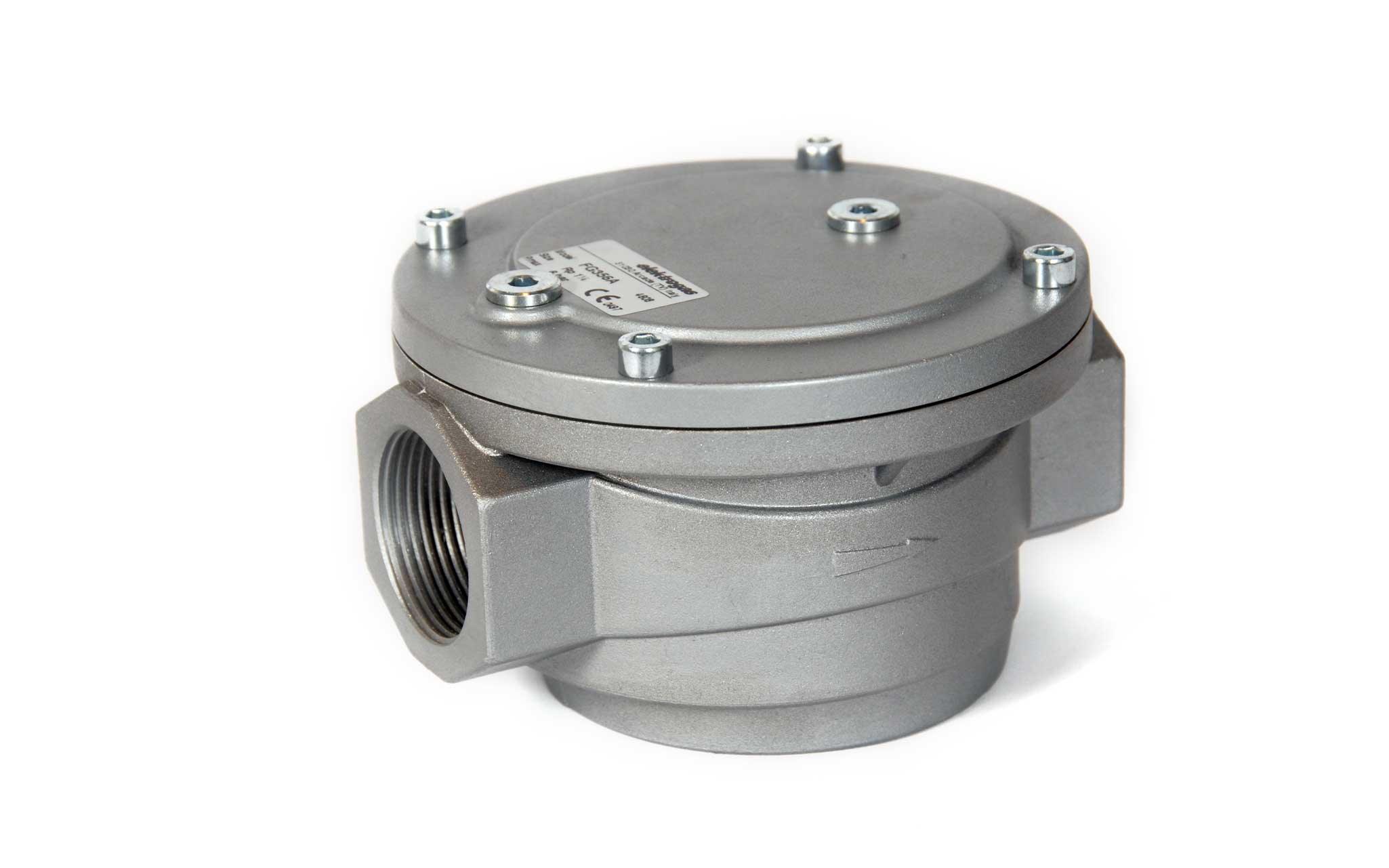

  • The filter type FG is a filter for gas pipes according to DIN 3386 with a very high retention capacity of dust and impurities.
  • It is suitable for the protection of downstream equipment

More details: Download data sheet

Valves with manual reset

Valves with manual reset

  • Brand ELEKTORGAS

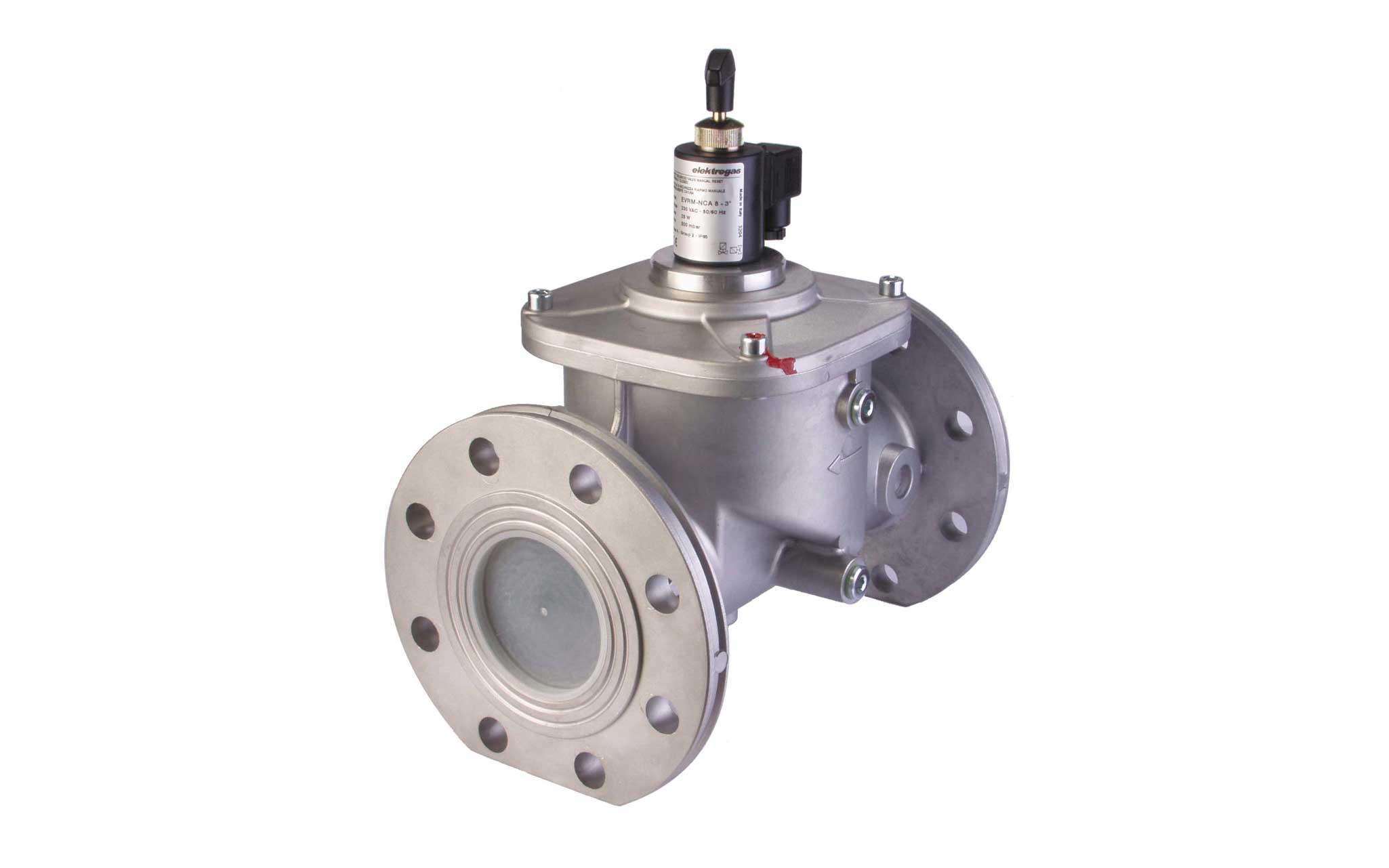

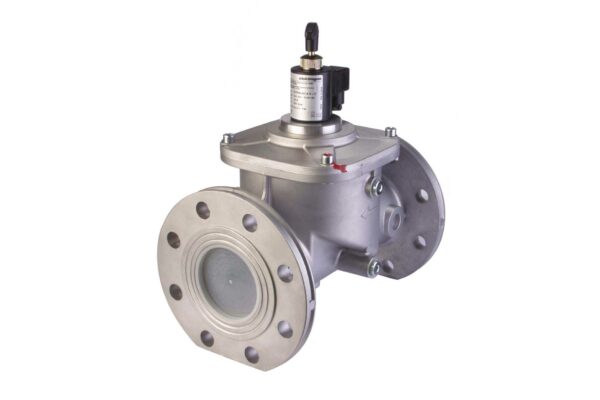

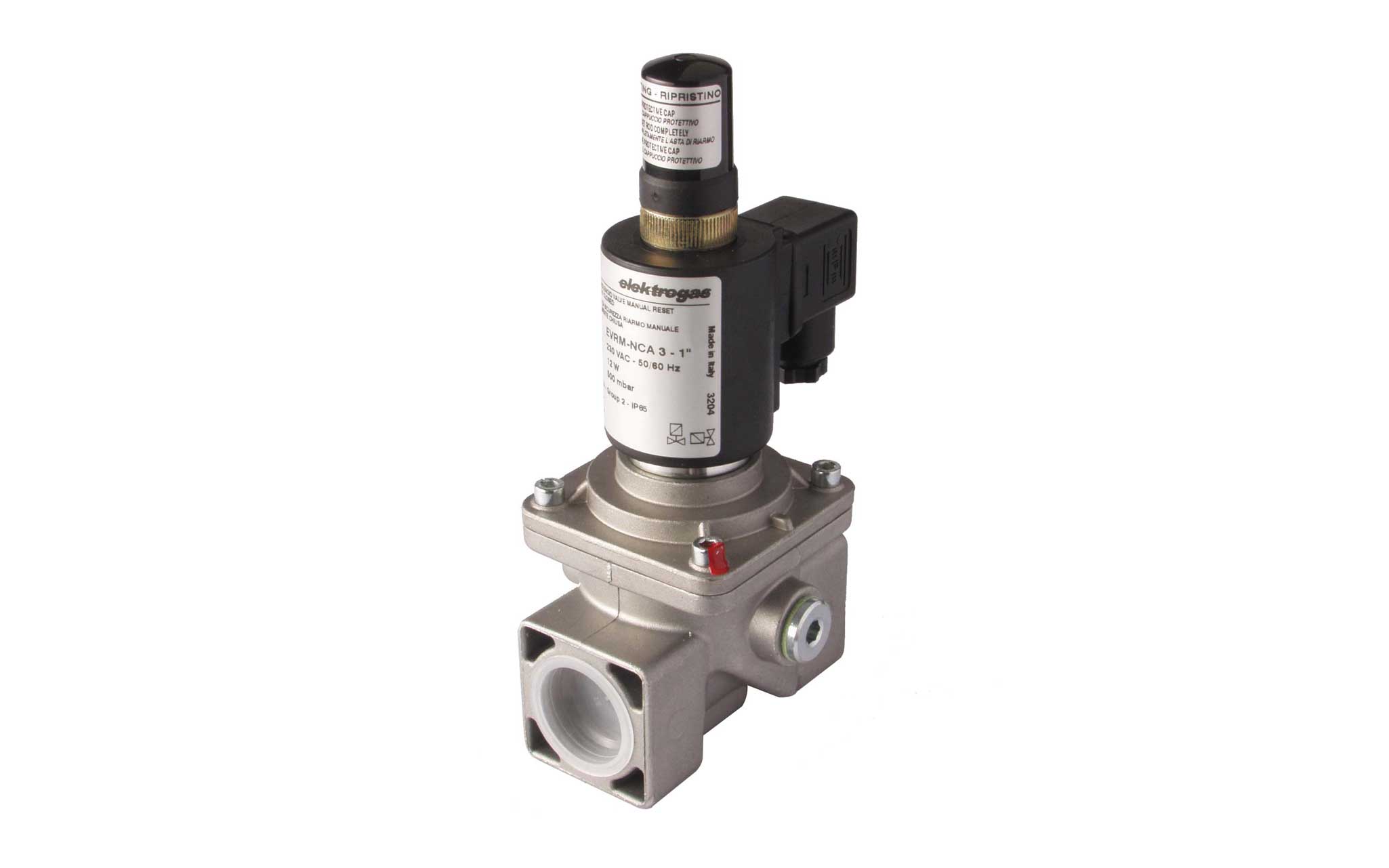

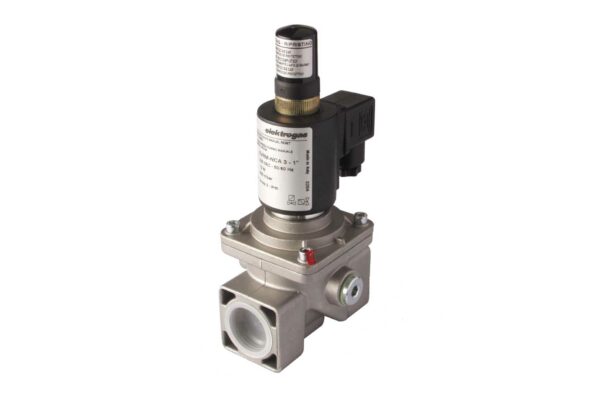

  • The EVRM-NA valve is a normally open safety valve with manual reset. The closing function is triggered electrically. This type of valve is used together with one or more gas leak detectors, a safety thermostat or alarms in the presence of carbon monoxide and is suitable for shutting off gas lines.
  • The EVRM-NC valve is a normally closed safety valve with manual reset (open when energized). This type of valve is used in conjunction with one or more gas leak detectors, a safety thermostat or carbon monoxide alarms and is suitable for shutting off gas lines.
